TSA LOCK INSTRUCTIONS

WHAT IS A TSA LOCK?

What is a TSA Lock?

WHAT IS A TSA LOCK?

TSA: TRANSPORT SECURITY ADMINISTRATION

TSA locks are required for all customers travelling to the USA. The TSA screens every passenger’s baggage before it is placed on the plane. At their discretion, from time to time, they choose to open a passenger’s luggage for closer inspection. When this occurs, if the luggage is fitted with any lock other than those approved by the TSA, they will destroy whatever lock is fitted to gain access.

Luggage locks approved by the TSA have a universal master key that will open the locks. Only the TSA have a copy of this master key. Every TSA approved lock has an identifying mark that shows it may be opened by the master key. All Samsonite TSA locks feature the red TSA logo.

RESETTING YOUR LOCK

  1. Have the lock set on your original combination.
  2. Repeat steps as described for each variation of lock (see below).

NEED ASSISTANCE?

Feel free in get in contact with us, our Customer Service team are available 9 AM - 6 PM Monday-Friday, email to ecommerce.id@samsonite.com.

All locks are set to a default of 0-0-0 at the factory. If you’ve forgot your unique combination you are going to need assistance from a Samsonite Authorised Repair Centre to unlock your combination lock. To locate your nearest Repair Centre, please click here.

Resetting Your TSA Lock

LOCK VARIATIONS

Please find your lock instructions below:

Top

TSA COMBINATION LOCKS

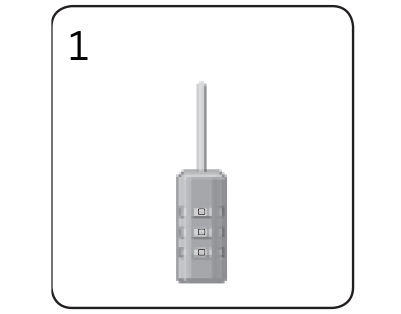

Samsonite combination TSA lock security feature

SET CODE TO 000

Samsonite combination TSA lock security feature

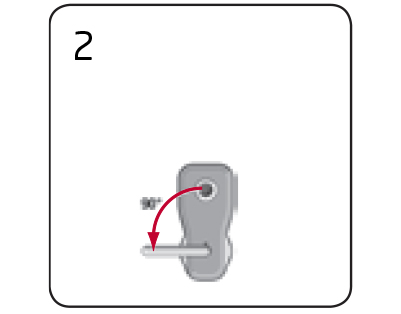

TURN 90°

Samsonite combination TSA lock security feature

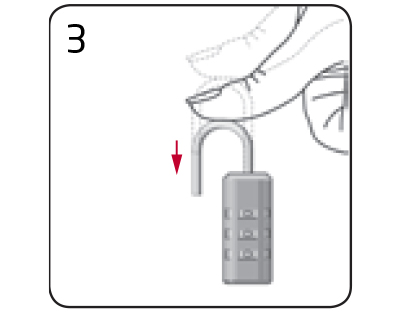

PUSH DOWN

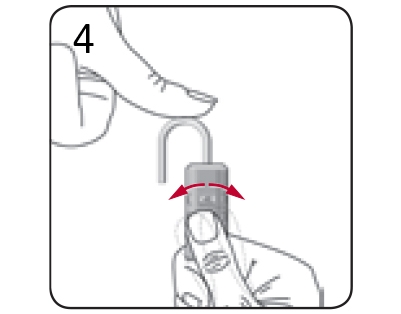

Samsonite combination TSA lock security feature

HOLD DOWN & SET CODE

Samsonite combination TSA lock security feature

PULL UP

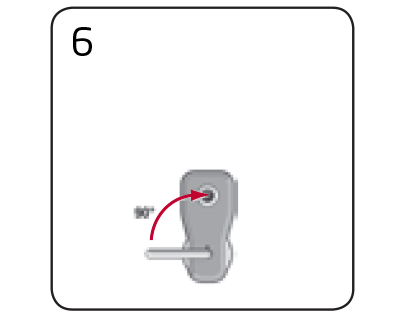

Samsonite combination TSA lock security feature

TURN BACK TO LOCK POSITION

Top

FEATURED ON 72 HOURS DLX, ENWRAP, ROBEZ, STEM, TOIIS AND VARRO

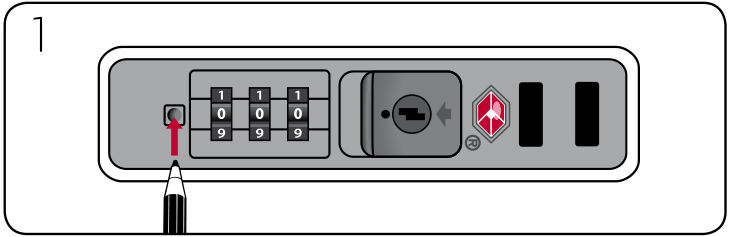

Samsonite 72H DLX luggage TSA lock design detail

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

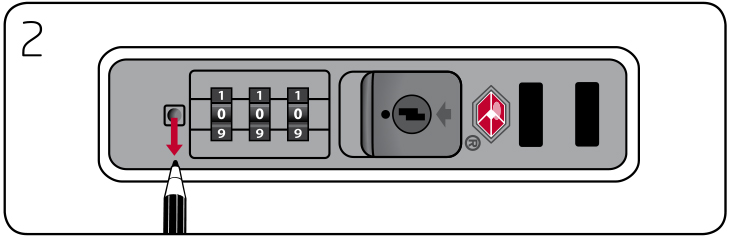

Samsonite 72H DLX luggage TSA lock design detail

REMOVE PEN, BUTTON WILL STAY PRESSED IN

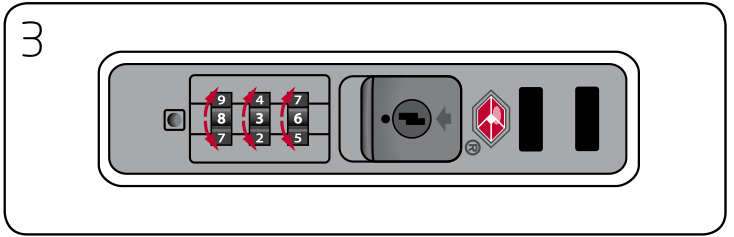

Samsonite 72H DLX luggage TSA lock design detail

SET CHOSEN CODE

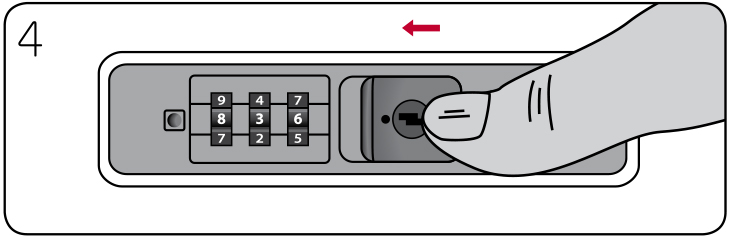

Samsonite 72H DLX luggage TSA lock design detail

SLIDE BUTTON ACROSS TO SET CODE

Top

FEATURED ON LITE-BIZ

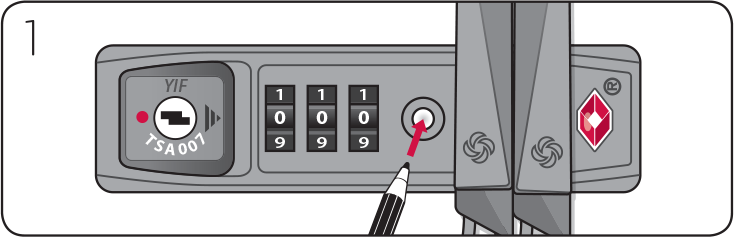

Samsonite Lite-Biz luggage TSA lock design detail

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

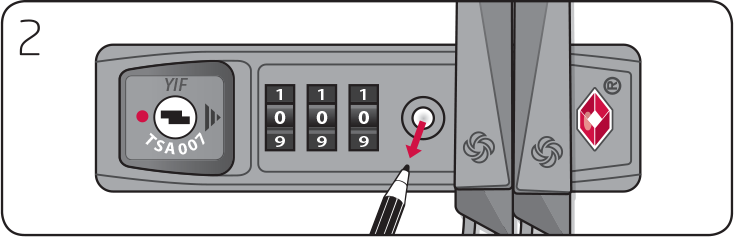

Samsonite Lite-Biz luggage TSA lock design detail

BUTTON AUTOMATICALLY STAYS PUSHED IN

Samsonite Lite-Biz luggage TSA lock design detail

SET CHOSEN CODE

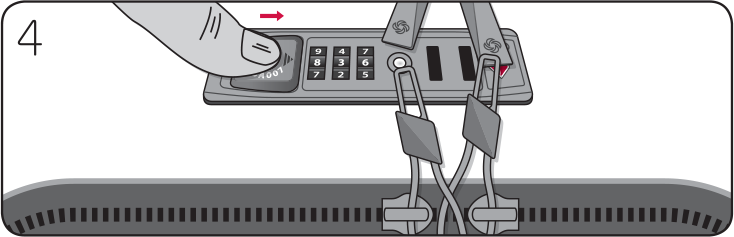

Samsonite Lite-Biz luggage TSA lock design detail

RELEASE BY PRESSING SIDE BUTTON

Top

FEATURED ON ARQ, EVOA AND POLYGON

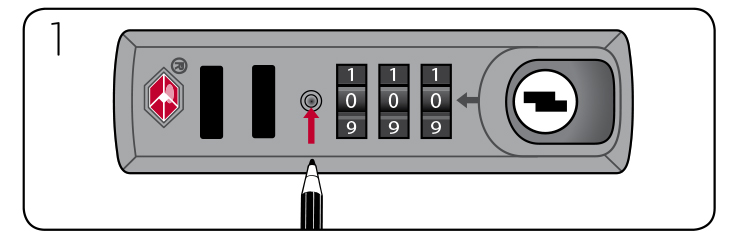

Samsonite ARQ luggage TSA lock close-up

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

Samsonite ARQ luggage TSA lock close-up

REMOVE PEN, BUTTON WILL STAY PRESSED IN

Samsonite ARQ luggage TSA lock close-up

SET CHOSEN CODE

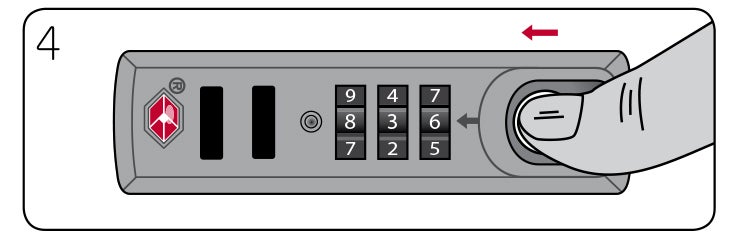

Samsonite ARQ luggage TSA lock close-up

SLIDE BUTTON ACROSS TO SET CODE

Top

FEATURED ON BASE BOOST AND SPARK SNG ECO

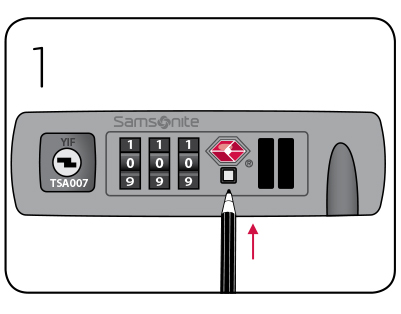

Samsonite Base Boost luggage TSA lock detail image

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

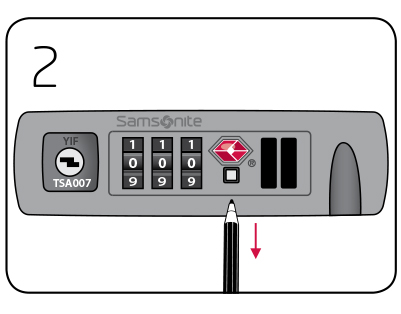

Samsonite Base Boost luggage TSA lock detail image

BUTTON AUTOMATICALLY STAYS PUSHED IN

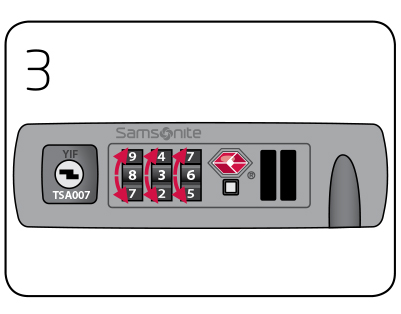

Samsonite Base Boost luggage TSA lock detail image

SET CHOSEN CODE

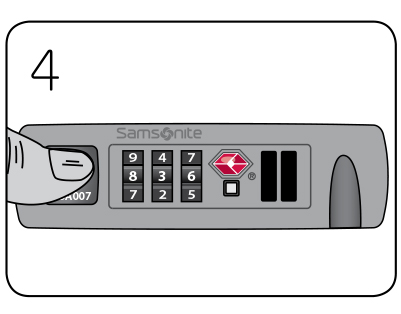

Samsonite Base Boost luggage TSA lock detail image

RELEASE BY PRESSING SIDE BUTTON

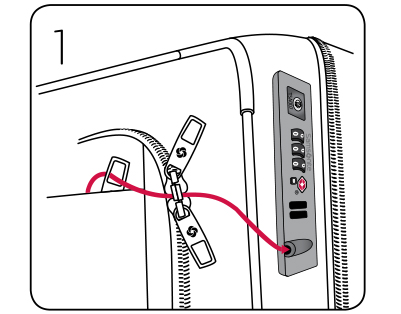

HOW TO SET THE CABLE LOCK

Samsonite Base Boost luggage TSA lock detail image

WEAVE THE CABLE THROUGH THE ZIP RINGS

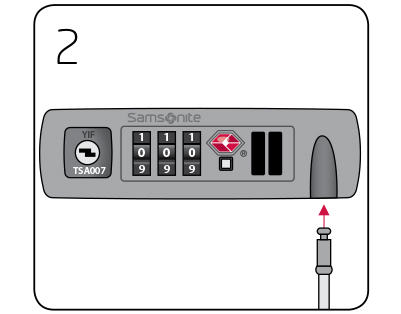

Samsonite Base Boost luggage TSA lock detail image

SECURE CABLE INTO THE COMBINATION LOCK

Top

INFINIPAK

Samsonite Infinipak backpack TSA lock detail

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

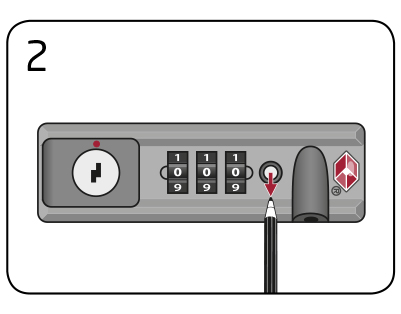

Samsonite Infinipak backpack TSA lock detail

BUTTON AUTOMATICALLY STAYS PUSHED IN

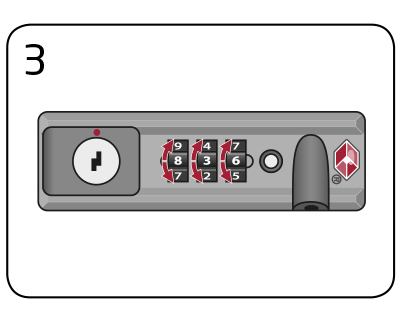

Samsonite Infinipak backpack TSA lock detail

SET CHOSEN CODE

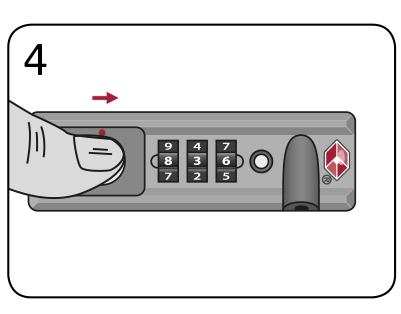

Samsonite Infinipak backpack TSA lock detail

RELEASE BY PRESSING SIDE BUTTON

HOW TO SET THE CABLE LOCK

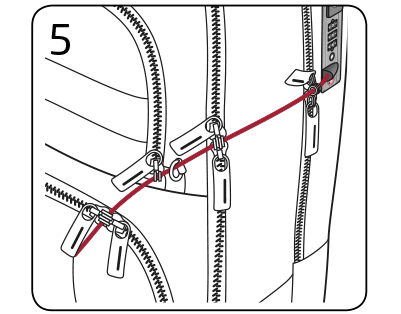

Samsonite Infinipak backpack TSA lock detail

WEAVE THE CABLE THROUGH THE ZIP RINGS

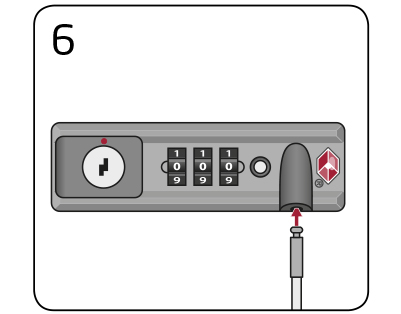

Samsonite Infinipak backpack TSA lock detail

SECURE CABLE INTO COMBINATION LOCK

Top

FEATURED ON B’LITE 3, OCTOLITE, COSMOLITE 3.0 AND PROXIS

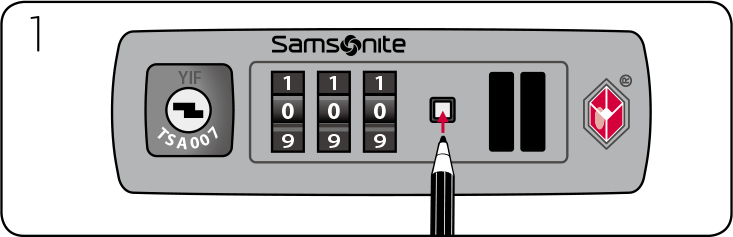

Step 1: Illustration of Samsonite TSA007 combination lock with pen pressing reset button

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

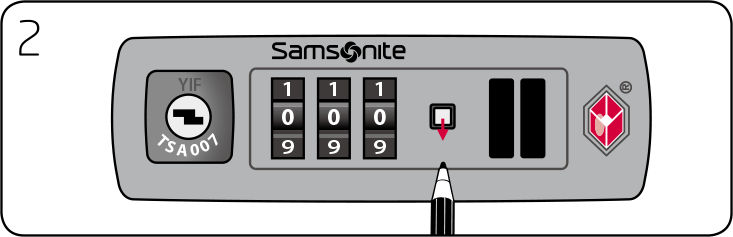

Samsonite TSA007 lock Step 2, reset button pressed with pen

BUTTON AUTOMATICALLY STAYS PUSHED IN

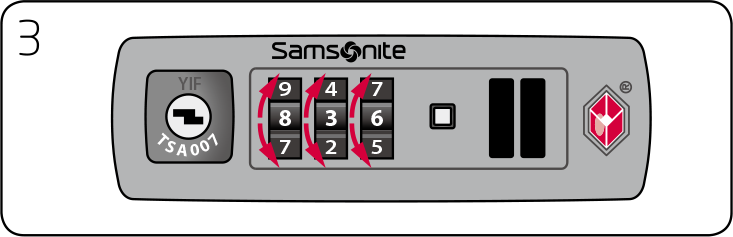

Ultimo lock step 3

SET CHOSEN CODE

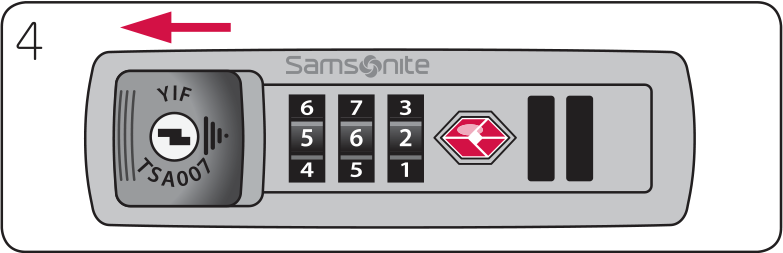

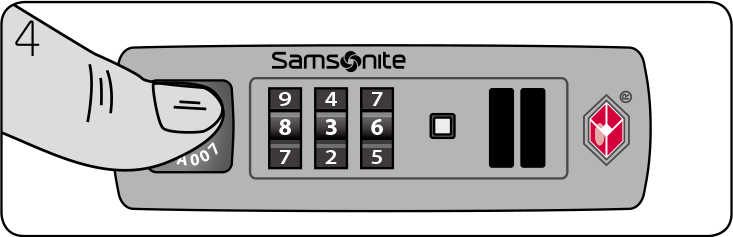

Ultimo lock step 4

RELEASE BY PRESSING SIDE BUTTON

Top

FEATURED ON LITE-SHOCK

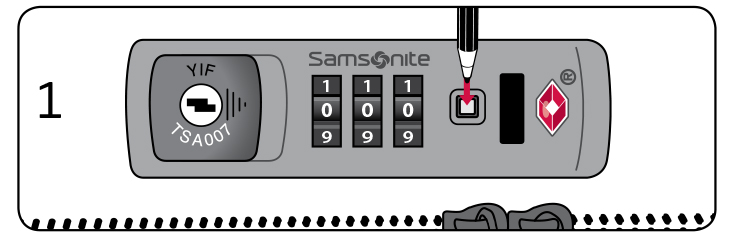

Samsonite Lite-Shock luggage TSA lock close-up view

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

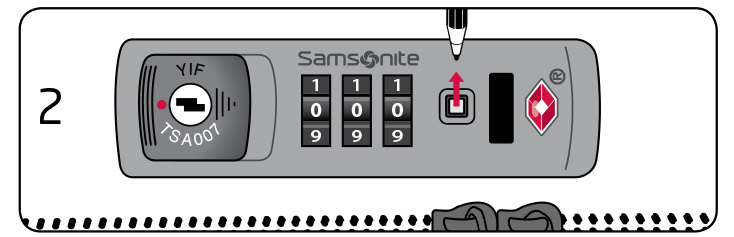

Samsonite Lite-Shock luggage TSA lock close-up view

REMOVE PEN, BUTTON WILL STAY PRESSED IN

Samsonite Lite-Shock luggage TSA lock close-up view

SET CHOSEN CODE & SECURE ZIPPERS INTO LOCK

Samsonite Lite-Shock luggage TSA lock close-up view

SLIDE BUTTON ACROSS TO SET CODE

Top

LITE-SPHERE SPL

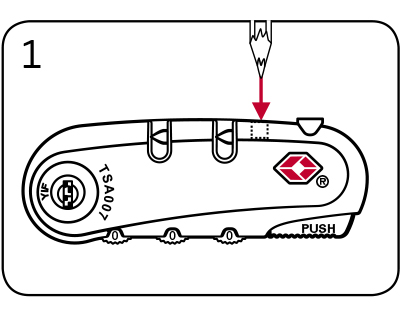

Samsonite Lite-Sphere SPL TSA lock design detail

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

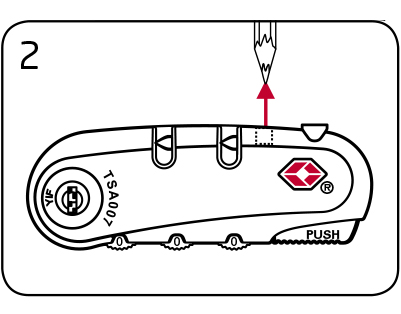

Samsonite Lite-Sphere SPL TSA lock design detail

BUTTON AUTOMATICALLY STAYS PUSHED IN

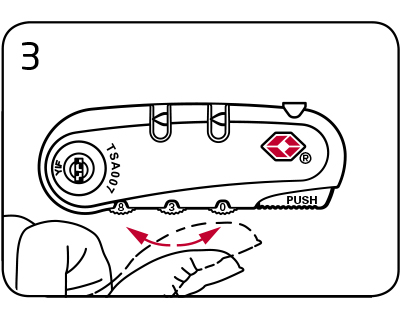

Samsonite Lite-Sphere SPL TSA lock design detail

SET CHOSEN CODE

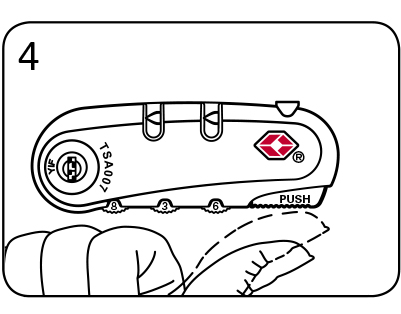

Samsonite Lite-Sphere SPL TSA lock design detail

RELEASE BY PRESSING SIDE BUTTON

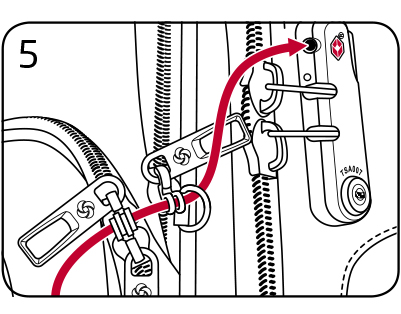

HOW TO SET THE CABLE LOCK

Samsonite Lite-Sphere SPL TSA lock design detail

WEAVE THE CABLE THROUGH THE ZIP RINGS

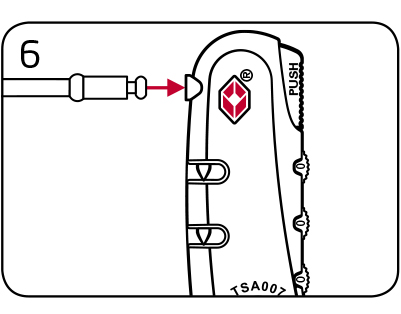

Samsonite Lite-Sphere SPL TSA lock design detail

SECURE CABLE INTO COMBINATION LOCK

Top

FEATURED ON PLATINUM LITE AND MEMPHIS

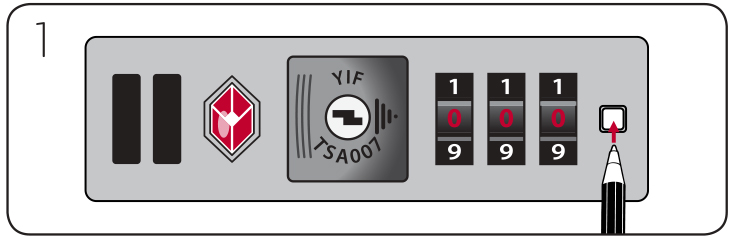

Samsonite Platinum Lite Memphis TSA lock feature

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

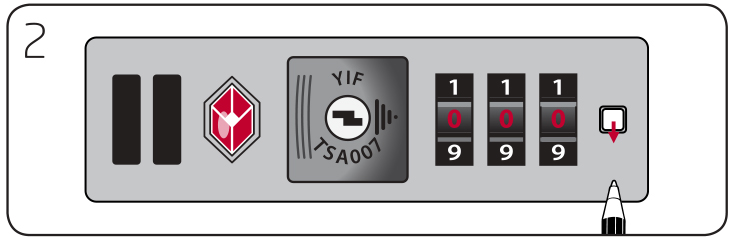

Samsonite Platinum Lite Memphis TSA lock feature

REMOVE PEN, BUTTON WILL STAY PRESSED IN

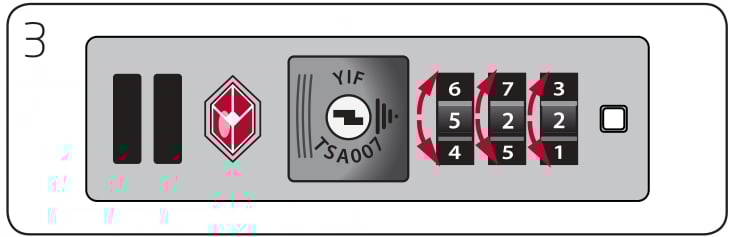

Samsonite Platinum Lite Memphis TSA lock feature

SET CHOSEN CODE

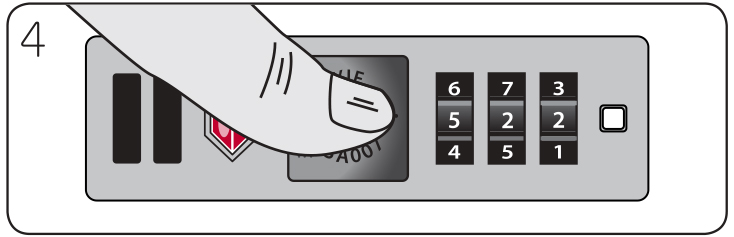

Samsonite Platinum Lite Memphis TSA lock feature

SLIDE BUTTON ACROSS TO SET CODE

Top

FEATURED ON PIXELON

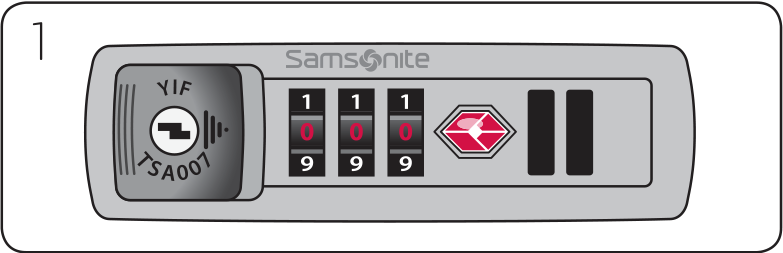

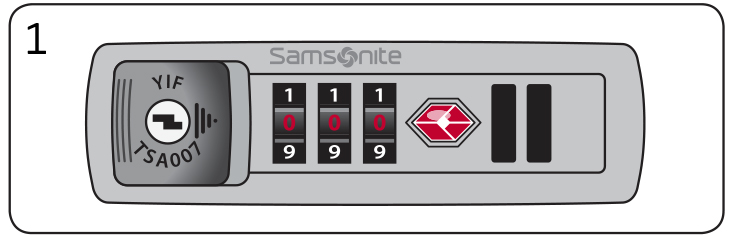

Step 1: Samsonite TSA007 combination lock illustration showing default dials set to 0-0-0

SET CODE TO 000

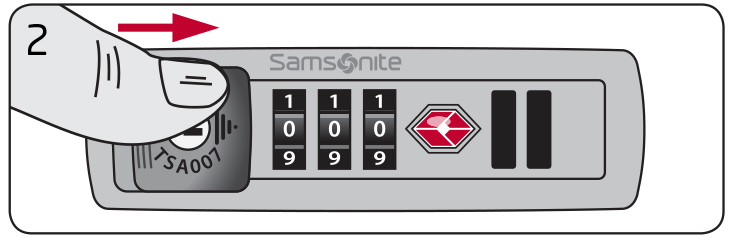

step showing that the default code lock

PUSH BUTTON ACROSS & HOLD

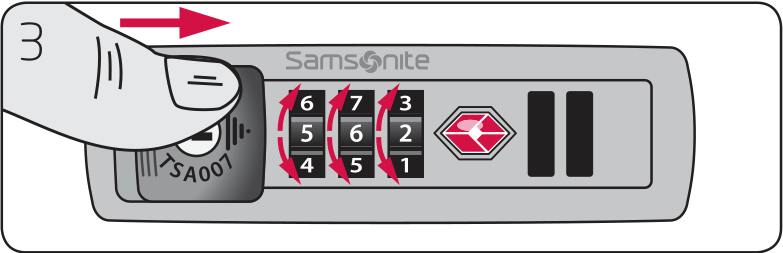

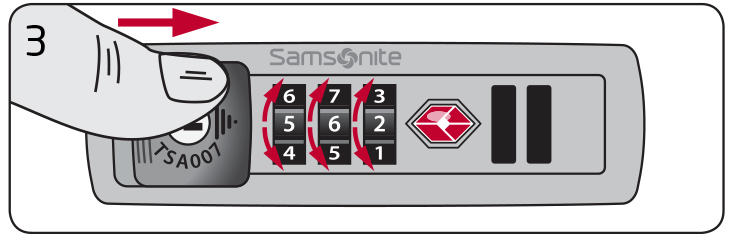

Samsonite TSA007 lock Step 3, press button and set dials

CONTINUE HOLDING BUTTON & SET CHOSEN CODE

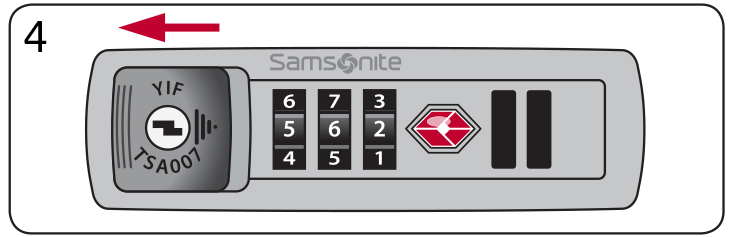

Samsonite TSA007 lock Step 4, release button after setting code

RELEASE BUTTON

Top

PRODIGY

Samsonite Prodigy luggage TSA lock close-up feature

SET CODE TO 000

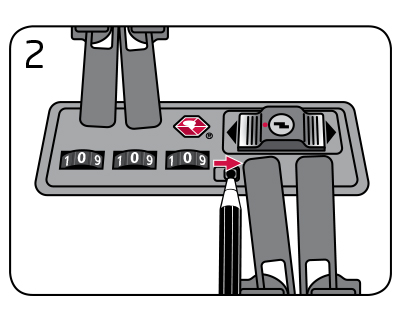

Samsonite Prodigy luggage TSA lock close-up feature

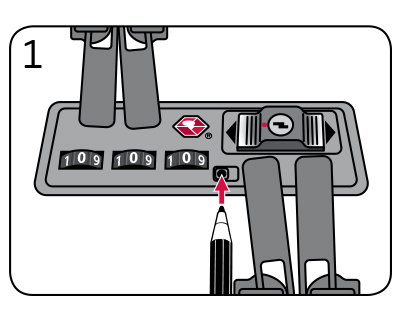

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

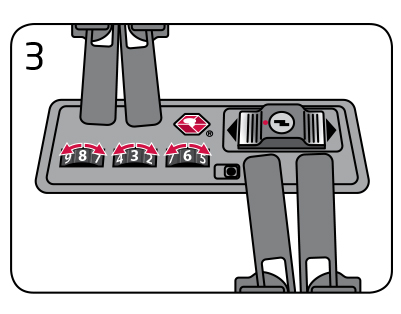

Samsonite Prodigy luggage TSA lock close-up feature

SET CHOSEN CODE

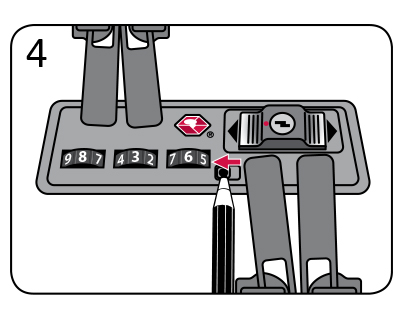

Samsonite Prodigy luggage TSA lock close-up feature

MOVE BUTTON BACK TO ORIGINAL POSITION

HOW TO RELEASE DUAL LOCK

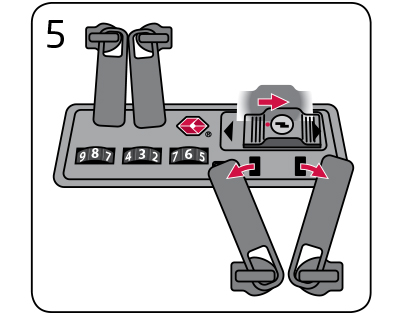

Samsonite Prodigy luggage TSA lock close-up feature

SLIDE LOCK TO RIGHT TO RELEASE ZIPS

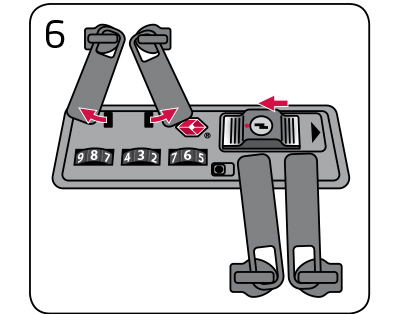

Samsonite Prodigy luggage TSA lock close-up feature

SLIDE LOCK TO LEFT TO RELEASE OPPOSITE ZIPS

Top

OCTOLITE SS AND SMARTTOP

Samsonite TSA lock Step 1, pen pressing reset button

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

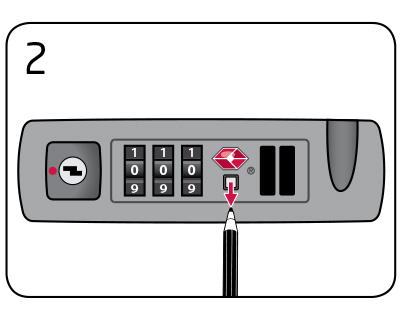

Step 2 lock reset button

BUTTON AUTOMATICALLY STAYS PUSHED IN

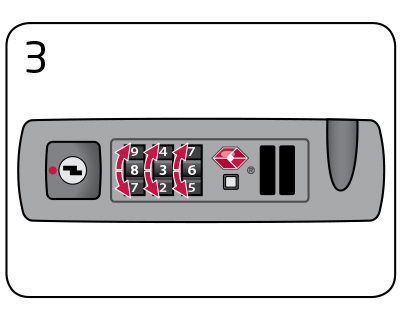

Samsonite TSA lock Step 3, rotate dials to set new code

SET CHOSEN CODE

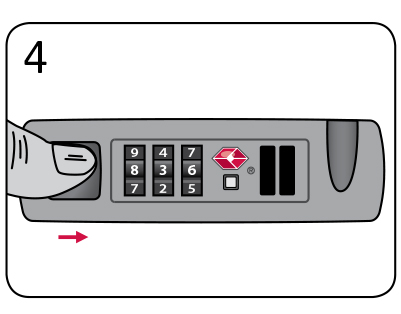

actolite step 4 lock system

RELEASE BY PRESSING SIDE BUTTON

HOW TO SET THE CABLE LOCK

Samsonite TSA lock Step 5, zippers secured into lock

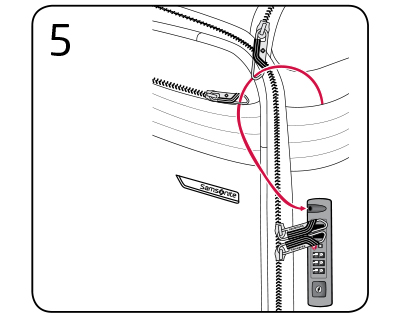

WEAVE THE CABLE THROUGH THE ZIP RINGS

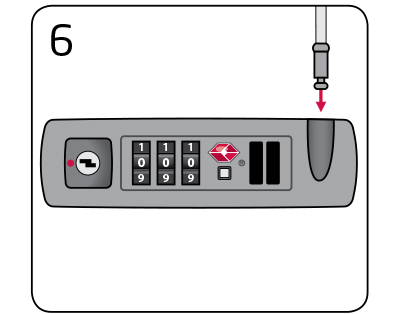

Samsonite TSA lock Step 6, cable inserted into latch to secure lock

SECURE CABLE INTO COMBINATION LOCK

Top

FEATURED ON ENGENERO AND SPIN TRUNK

Lock default code 0-0-0

SET CODE TO 000

step 2 slide the lock to open

CONTINUE HOLDING BUTTON AND SET CHOSEN CODE

Samsonite TSA007 lock instructions, Step 3 showing dial

PUSH BUTTON ACROSS AND HOLD

step 4 showing how to unlock the lock

RELEASE BUTTON TO SET NEW CODE

Top

FEATURED ON LITE-LOCKED

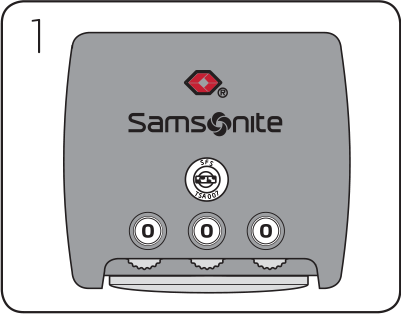

Samsonite TSA three-dial lock Step 1, default code 0-0-0

SET CODE TO 000

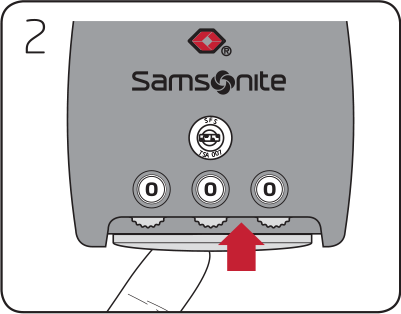

Samsonite TSA combination lock illustration showing reset step with dials set to 0-0-0

PULL LOCK UP

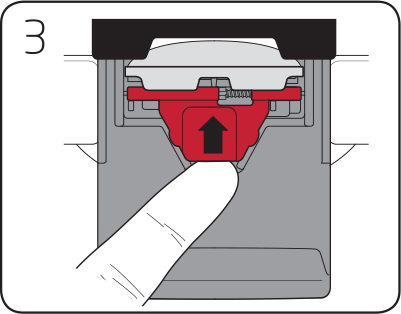

Samsonite TSA lock Step 3, finger pressing red reset button

MOVE RED TAB UPWARDS

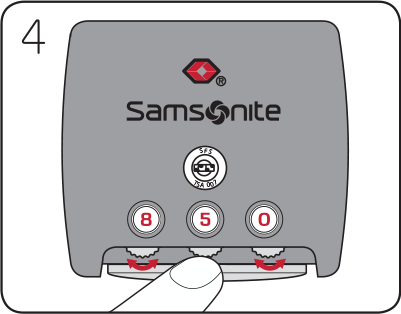

Samsonite TSA three-dial lock Step 4, set new code on dials

SET CHOSEN CODE

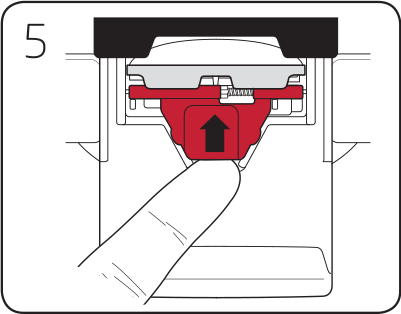

step 5 tsa lock

RETURN RED TAB TO ORIGINAL POSITION

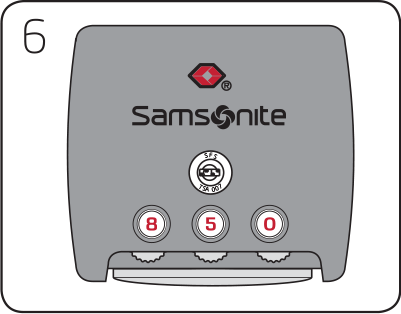

Lock showing 8-5-0

COMPLETE

Top

FEATURED ON S’CURE

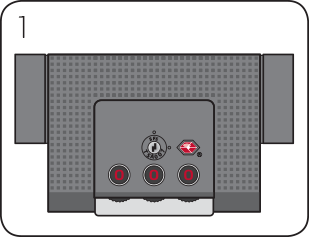

default factory code 0-0-0

SET CODE TO 000

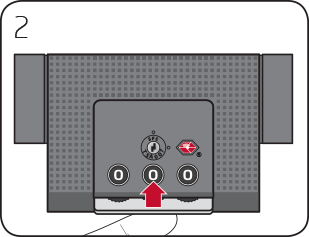

Samsonite TSA three-dial lock Step 2, reset at 0-0-0

PULL UP LOCK

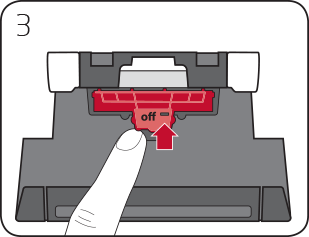

Samsonite TSA lock Step 3, finger pushing red switch

MOVE RED TAB TO OPEN POSITION

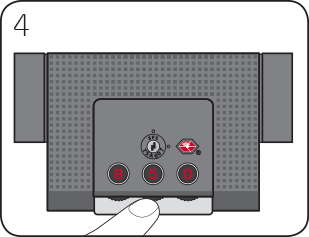

step 4 showing to set the correct number sequence

SET CHOSEN CODE

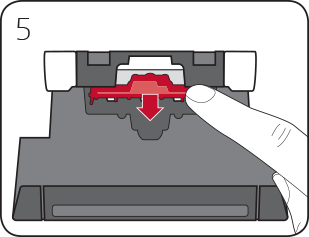

Samsonite TSA lock Step 5, red button pressed to confirm code

RETURN RED TAB TO ORIGINAL POSITION

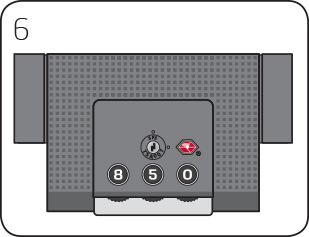

tsa scure step 6

COMPLETE

Top

FEATURED ON FIRELITE AND CHRONOLITE

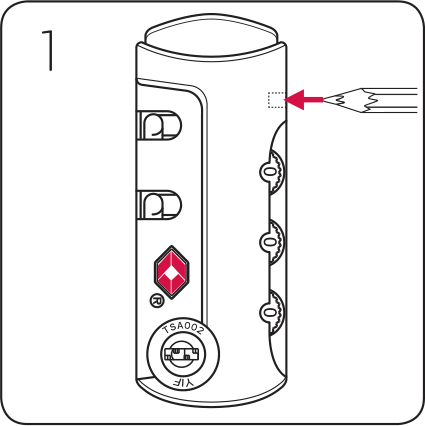

Samsonite Firelite luggage TSA lock feature close-up

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

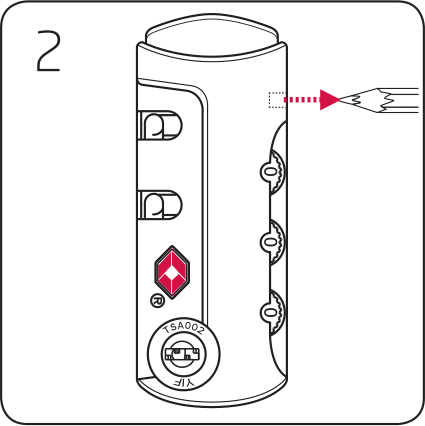

Samsonite Firelite luggage TSA lock feature close-up

BUTTON AUTOMATICALLY STAYS PUSHED IN

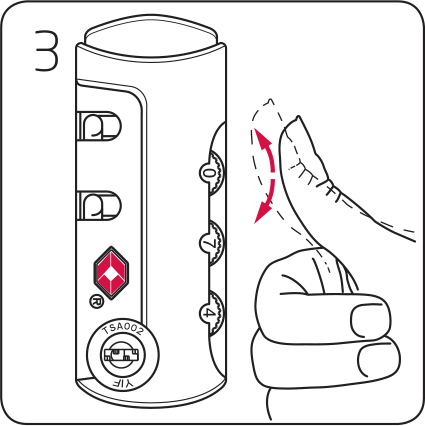

Samsonite Firelite luggage TSA lock feature close-up

SET CHOSEN CODE

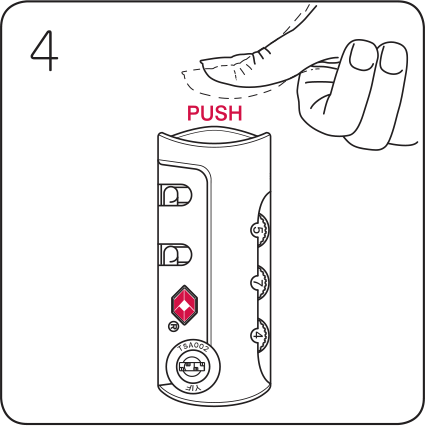

Samsonite Firelite luggage TSA lock feature close-up

RELEASE BY PRESSING TOP BUTTON

Top

FEATURED ON DURANXT LITE

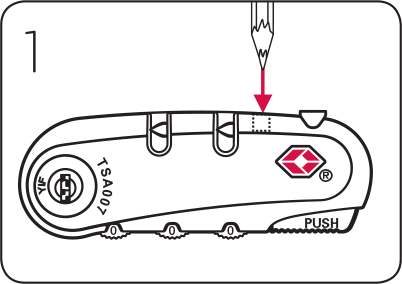

step 1 tsa cable lock

SET CODE TO 000 AND USE PEN TO PUSH IN BUTTON

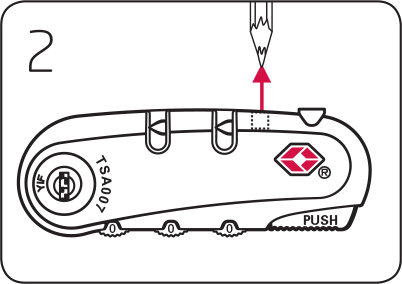

tsa cable step 2

RELEASE THE PUN, BUTTON WILL STAY PUSHED IN

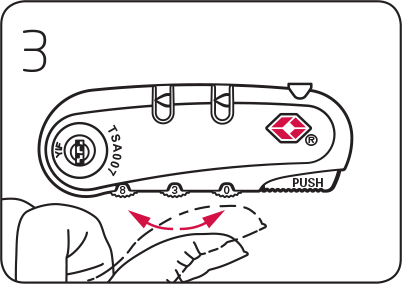

Step showing how to change the sequence code number

SET CHOSEN CODE

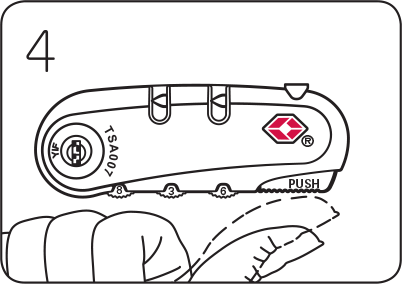

step 4 showing to push the button to unlock

PUSH TOP BUTTON TO SET THE NEW CODE

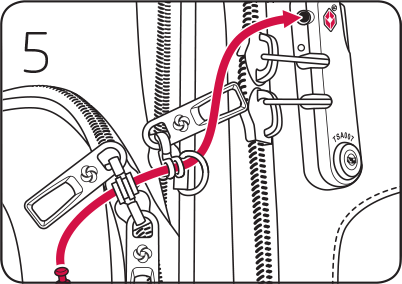

Samsonite TSA007 lock instructions, Step 5 showing zippers secured into lock

TO SET THE CABLE LOCK WEAVE THE CABLE THROUGH THE ZIP RINGS

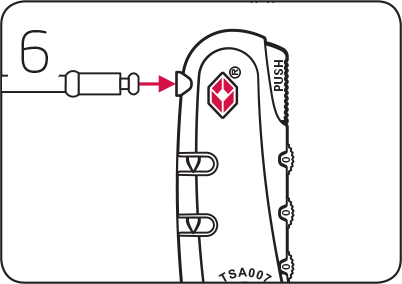

Samsonite TSA007 lock Step 6, cable inserted to secure lock

SECURE CABLE INTO COMBINATION LOCK

Top

FEATURED ON SAVIO LEATHER IV

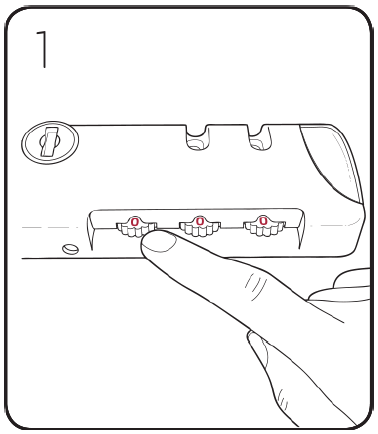

step 1 showing the roller that can change number

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

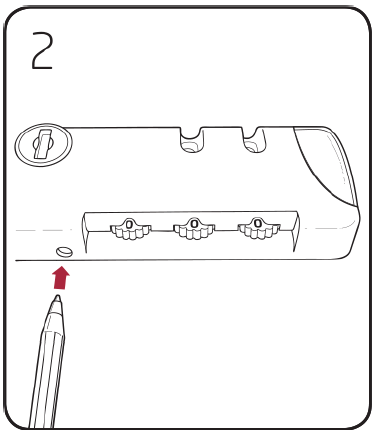

step 2

BUTTON AUTOMATICALLY STAYS PUSHED IN

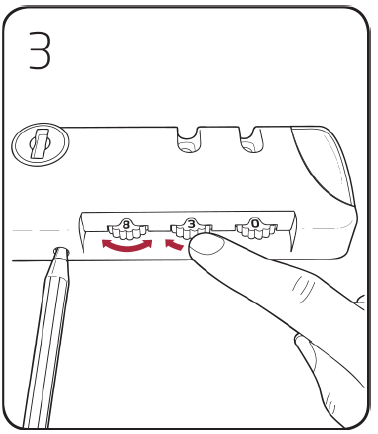

step 3

SET CHOSEN CODE

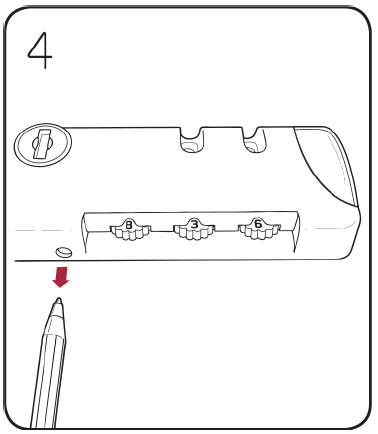

step 4

RELEASE BY PRESSING SIDE BUTTON

Top

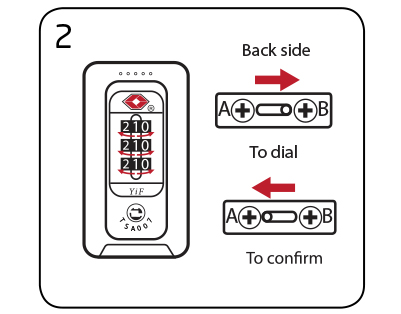

FEATURED ON TRU FRAME

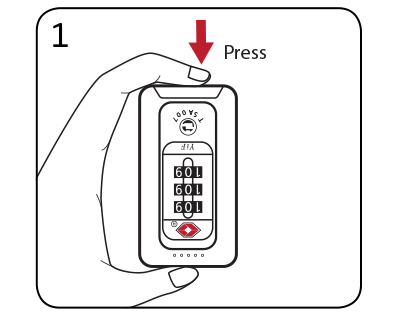

PRESS BUTTON IN TO RELEASE LOCK

SET CHOSEN CODE

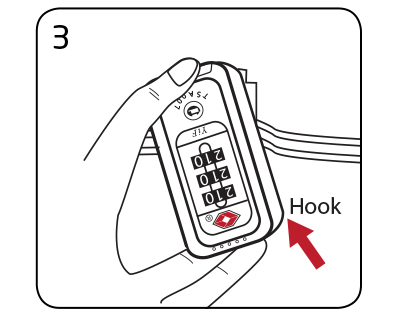

TWIST LOCK INTO HOOK TO SECURE

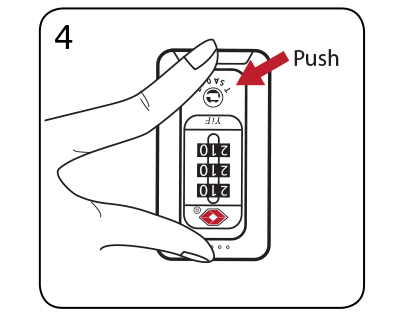

PUSH INWARDS TO SET LOCK
